Towing Setup & Capacity
The Best Trailer Brake Controller For A Ram 1500
Before you buy anything: a lot of Ram 1500s already have a brake controller built into the dash. Here is how to check, and what to buy if yours does not.
By Mike M. ·
How this page is funded: we earn a commission if you buy through our links, at no extra cost to you. It never changes which product we rank first. Prices come from Amazon and are read automatically — each one shows the date it was read. Full disclosure.
Quick picks
Four controllers on the brake rubric — braking control (30%), install effort (25%), adjustability (20%), feedback (15%), price (10%) — plus the Ram-specific harness that makes any of them plug in.
| # | Product | Best for | Score | Price |
|---|---|---|---|---|
| 1 |  CURT TriFlex Next Proportional Trailer Brake Controller, 51146 Proportional, plug-and-play, fully adjustable and rated to four axles for well under the price of the knob-controlled version — the sensible default if your truck has a factory brake harness. Top pick | Most first-time buyers who want proportional braking cheaply | 8.2/ 10 | |
| 2 |  CURT 51457 Quick Plug Brake Control Wiring Harness, Select Ram The part that decides whether fitting a brake controller to a Ram is a ten-minute plug-in or an afternoon of splicing. Vehicle-specific, and cheap enough that there is no reason to splice instead. Buy this with it | Turning a Ram brake-controller install into a plug-in job | 8.9/ 10 | |
| 3 |  Hopkins Agility Trailer Brake Control An inexpensive proportional controller from a long-standing towing-electrics maker. It does the one job that matters — braking in proportion to the truck — without a readout to admire. Cheapest worth fitting | The cheapest proportional controller worth fitting | 6.6/ 10 | |
| 4 |  CURT Spectrum Proportional Trailer Brake Controller, 51170 Proportional braking with a dash-mounted knob, which beats an app the first time you feel the trailer push and want to change gain without looking away from the road. | A permanent install with a physical knob you can reach | 7.2/ 10 | |
| 5 |  CURT Echo Mobile Bluetooth Trailer Brake Controller, 51180 Plugs in between the truck's 7-way and the trailer plug and is controlled from a phone, so there is nothing to mount and nothing to wire — the only controller here you can move between vehicles in a minute. No drilling, no wiring | A rented or borrowed tow vehicle, or a truck you do not want to drill | 8.2/ 10 |
Tap any row to jump to the full write-up. Prices come from Amazon and are read automatically — see each product below for the date.
The short answer
This page exists because the single most useful thing we can tell a Ram owner is often “do not buy this.” Ram has offered a factory integrated trailer brake controller on the 1500 for years as part of the tow package, and a meaningful share of owners shopping for an aftermarket controller already have a better one fitted. Everything after the check assumes you looked and it was not there.
How to tell if your Ram already has one
Three places to look, in this order. It takes two minutes and it is the whole reason to read this page before ordering.
- 1
Look for a gain control
A factory controller has a physical adjustment — commonly a small knob or a pair of buttons on the lower dash or near the shifter, separate from the trailer light switch. That control is the giveaway. - 2
Check the instrument cluster menu
Scroll the driver information display for a trailer or trailer brake menu. A truck with a factory controller has gain settings and trailer brake status in there. A truck without one has no such menu. - 3
Check the tow package and the connector
A 7-way round connector at the bumper suggests a tow package, though it does not guarantee the controller. If the dash control and the cluster menu are both absent, you need an aftermarket controller — and the factory brake-controller connector behind the dash is probably still there, which is what makes the harness work.
The common mistake
The harness is the part that makes this easy
Here is the Ram-specific detail that changes the job. Ram trucks that left the factory without a controller generally still have a brake-controller connector behind the lower dash — the wiring is there, unterminated, waiting. A vehicle-specific Quick Plug harness plugs into it on one end and into your new controller on the other.
That means no splicing, no cutting into factory wiring, no running a power lead to the battery. It is the difference between a ten-minute job and an afternoon with a multimeter, and the harness costs a fraction of the controller. There is no good reason to splice a Ram.
One caution: CURT lists more than one Ram harness, because the connector changed across model years and generations. The 51457 and 51458 both cover selections of Ram 1500, Classic, 2500 and 3500, and older Dodge Ram trucks take a different part again. Check your year and model against the listing before ordering — this is the one place a wrong part is easy to buy.
Proportional, not time-delay
Whatever you fit, make it proportional. A
proportional controller: controller with an accelerometer that senses how hard the truck is decelerating and applies the trailer brakes to match
brakes the trailer in step with the truck. A time-delay controller just ramps to a preset level whenever the pedal is pressed, which means it under-brakes gentle stops and lurches on hard ones.The price gap between the two has closed to the point where there is no argument left. Proportional vs time-delay covers the difference properly if you want the detail.
Which controller for which Ram owner
A Ram 1500 is a straightforward install target: a big cab, an accessible lower dash, and a factory connector. That widens the field rather than narrowing it, so the choice comes down to how you want to interact with the thing.
| If this is you | Buy | Why |
|---|---|---|
| First trailer, want it done right and cheaply | CURT TriFlex Next | Proportional, low profile, plug-and-play with the harness |
| Want a knob you can reach and turn mid-tow | CURT Spectrum | Dash-mount knob rather than a menu or a screen |
| Towing with a leased truck, or will not drill | CURT Echo | Plugs into the 7-way, controlled from your phone |
| Cheapest proportional unit worth fitting | Hopkins Agility | Proportional braking at the bottom of the price range |
A note on the vehicle-specific route: REDARC sells Tow-Pro kits built around particular trucks, including Ram, which give the tidiest factory-looking install because the gain knob mounts into a blank in the dash. Availability on the Ram-specific kits moves around, so we have not ranked one here — if you want that look, search REDARC Tow-Pro for your exact Ram generation and check what is actually in stock.
If the Ram is leased or borrowed
The Echo deserves its own paragraph for this case. It plugs into the 7-way connector between truck and trailer and is adjusted from a phone app, so nothing is mounted, drilled or wired. You unplug it and take it with you.
It costs more than a wired controller and you are adjusting gain on a screen rather than a knob, which some owners dislike. For a leased truck, a company truck, or a rental you are towing with once, those are easy trade-offs.
Setting the gain, once it is in
A controller is not finished when it is mounted. Gain has to be set for your loaded trailer, and it changes when the load changes.
Find an empty stretch, get to around 25 mph, and apply the manual override lever alone. If the trailer does not slow the rig noticeably, raise the gain. If you feel or hear the trailer tires skid, lower it. You want the trailer braking firmly without locking. Redo it whenever the trailer is loaded very differently — a full fresh water tank is a real change.
That setting interacts with how the trailer is loaded in the first place. Measuring tongue weight and payload vs towing capacity are the two numbers that decide whether a Ram 1500 is the right truck for your trailer at all, and a brake controller does not fix being over on either.
What to remember
- Check the dash and cluster menu first — many Ram 1500s with the tow package already have a factory controller.
- A 7-way connector does not mean you have a controller. Something still has to generate the signal.
- Buy the Ram-specific Quick Plug harness with the controller. It removes all splicing for a few dollars.
- CURT lists more than one Ram harness — match it to your year and model before ordering.
- Proportional only. Time-delay under-brakes gentle stops and lurches on hard ones.
- For a leased or borrowed Ram, the Echo plugs into the 7-way and mounts nothing.
- Set gain by feel at about 25 mph using the manual override, and reset it when the load changes.
The picks in full
CURT TriFlex Next Proportional Trailer Brake Controller, 51146
CURT · Best for most first-time buyers who want proportional braking cheaply
Proportional, plug-and-play, fully adjustable and rated to four axles for well under the price of the knob-controlled version — the sensible default if your truck has a factory brake harness.
Key specifications
- Braking
- Proportional, inertia-based
- Axles
- 2-4 axles
- Install
- Plug-and-play with factory harness
- Profile
- Low profile, fully adjustable
Capacity figures read from CURT TriFlex Next specifications, October 2026.
How it scored
- Braking control (30%)9
- Install effort (25%)8
- Adjustability (20%)8
- Readout / feedback (15%)7
- Price for capability (10%)9
Weighted average of the figures above. We did not test this product — see how we pick.
What it does well
- Cheapest genuine proportional controller here
- Handles up to four axles, so it outgrows a single trailer
- Low-profile case fits where a knob controller will not
What it is bad at
- Plug-and-play only if the truck already has the brake-control connector
- Adjustment is through buttons, which is slower than a knob while moving
- No app, no remote display
Price as of October 7, 2026. #ad How this is funded

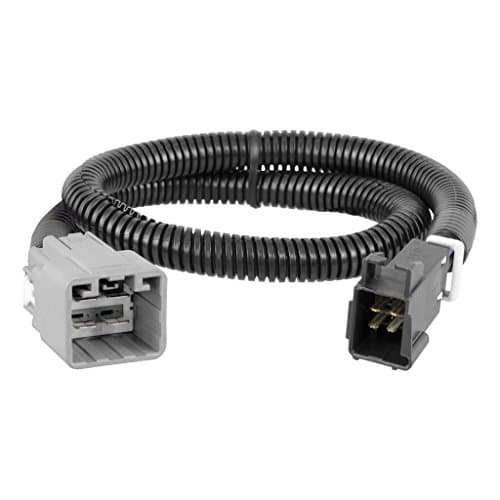

CURT 51457 Quick Plug Brake Control Wiring Harness, Select Ram
CURT · Best for turning a ram brake-controller install into a plug-in job
The part that decides whether fitting a brake controller to a Ram is a ten-minute plug-in or an afternoon of splicing. Vehicle-specific, and cheap enough that there is no reason to splice instead.
Key specifications
- Fits
- Select Ram 1500, Classic, 2500, 3500, 4500, 5500
- Function
- Plugs a controller into the factory tow connector
- Wiring
- No splicing or cutting required
- Note
- Check the year range against your truck before ordering
Capacity figures read from CURT Quick Plug harness application listing, October 2026.
How it scored
- How often you use it (40%)9
- Build quality (25%)8
- Takes up little room (20%)9
- Price for capability (15%)10
Weighted average of the figures above. We did not test this product — see how we pick.
What it does well
- Removes the splicing step that puts people off fitting a controller themselves
- Costs a fraction of the controller it connects
- Keeps the factory wiring intact, which matters at trade-in
What it is bad at
- Ram-specific — useless on any other make
- CURT lists more than one Ram harness; the year and model decide which
- Only helps if your truck has the factory brake-controller connector
Price as of October 7, 2026. #ad How this is funded
Hopkins Agility Trailer Brake Control
Hopkins · Best for the cheapest proportional controller worth fitting
An inexpensive proportional controller from a long-standing towing-electrics maker. It does the one job that matters — braking in proportion to the truck — without a readout to admire.
Key specifications
- Braking
- Proportional
- Install
- Hardwired
- Form
- Compact, multi-orientation mount
- Adjustment
- Gain dial
How it scored
- Braking control (30%)8
- Install effort (25%)5
- Adjustability (20%)6
- Readout / feedback (15%)5
- Price for capability (10%)10
Weighted average of the figures above. We did not test this product — see how we pick.
What it does well
- By far the lowest price for proportional braking
- Small enough to tuck out of the way
- Simple: a gain dial and a boost setting, nothing else to learn
What it is bad at
- Minimal display — you are flying on feel
- Hardwire install with no plug-and-play option
- Fewer configuration options than the CURT units
Price as of October 7, 2026. #ad How this is funded
CURT Spectrum Proportional Trailer Brake Controller, 51170
CURT · Best for a permanent install with a physical knob you can reach
Proportional braking with a dash-mounted knob, which beats an app the first time you feel the trailer push and want to change gain without looking away from the road.
Key specifications
- Braking
- Proportional (inertia sensing)
- Control
- Dash-mount knob
- Install
- Hardwired, mount-anywhere orientation
- Display
- LED status
Capacity figures read from CURT Spectrum specifications, October 2026.
How it scored
- Braking control (30%)9
- Install effort (25%)5
- Adjustability (20%)8
- Readout / feedback (15%)7
- Price for capability (10%)6
Weighted average of the figures above. We did not test this product — see how we pick.
What it does well
- Physical knob — adjust by feel without taking your eyes off the road
- Mounts in any orientation, which matters in a cramped footwell
- Proportional response rather than a fixed time delay
What it is bad at
- Hardwiring is a real afternoon if the truck has no factory harness
- Priced above controllers with more axle capacity
- Readout is LEDs, not a numeric display
Price as of October 7, 2026. #ad How this is funded
CURT Echo Mobile Bluetooth Trailer Brake Controller, 51180
CURT · Best for a rented or borrowed tow vehicle, or a truck you do not want to drill
Plugs in between the truck's 7-way and the trailer plug and is controlled from a phone, so there is nothing to mount and nothing to wire — the only controller here you can move between vehicles in a minute.
Key specifications
- Install
- Plug-in between 7-way connectors
- Control
- Bluetooth app
- Axles
- 1-2 axles
- Mounting
- None required
Capacity figures read from CURT Echo specifications, October 2026.
How it scored
- Braking control (30%)8
- Install effort (25%)10
- Adjustability (20%)8
- Readout / feedback (15%)7
- Price for capability (10%)6
Weighted average of the figures above. We did not test this product — see how we pick.
What it does well
- No wiring, no drilling, no dash real estate
- Moves between tow vehicles in under a minute
- Sensitivity and gain adjust from the phone
What it is bad at
- You need the phone awake and paired to change anything while driving
- Rated for 1-2 axles only — not for a triple-axle trailer
- Highest price here for the fewest axles
Price as of October 7, 2026. #ad How this is funded
Common questions
Many do — it comes with the trailer tow package. Look for a gain knob or switch on the lower dash and a trailer brake menu in the cluster. If both are there, you already have one.
Not strictly, but buy it. Rams without a factory controller usually still have the connector behind the dash, and the Quick Plug harness connects to it with no splicing. Match the part to your year and model.
Yes — a Bluetooth unit like the CURT Echo plugs into the 7-way and is adjusted from a phone. Nothing is mounted or drilled, and it unplugs when you are done.
Loaded as you tow, get to about 25 mph and use only the manual override. No noticeable slowing means raise the gain; skidding tires means lower it. Reset it when the load changes.
Sources
- CURT published towing product specifications — read October 2026
- SAE J2807 — tow-vehicle gross combination weight rating procedure — read October 2026
- SAE J684 — trailer couplings, hitches and safety chains — read October 2026
- 49 CFR 393.70 — coupling devices and towing methods — read October 2026
